104T-BOX PC/104 Enclosure
Steel Enclosure for a pair of PC/104 buses
Features
- Dual PC/104 backplane in a low profile, low cost, steel enclosure
- Two PC/104 boards can be stacked side by side (CPU plus I/O board)
- Opening on both ends for ribbon cables, wiring and cooling
- Easy panel mounting provisions
- Protect system components during development
FACTORY OPTIONS
- DIN Rail mounting
- Custom panel cutouts for DB style and other connectors
- Complete system integration which includes design, development and support at the board, software, and system level
- Custom silkscreen with your logo
- RoHS Available. Please contact us for ordering information
$199.00
In StockDescription

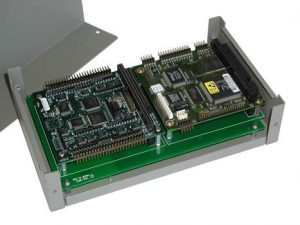

The 104T-BOX is a perfect solution for small systems which can benefit from the protection of a steel enclosure and the compact size of the PC/104 bus. This small, low profile enclosure measures just 5 5/16″ x 8″ x 2″. A dual 16-bit PC/104 backplane is integrated inside the enclosure and can accept two PC/104 modules. The 104T-BOX allows for a variety of simple system configurations to quickly and easily take full advantage of the modularity, reliability and small-scale size of PC/104.
APPLICATIONS
- Military and Defense
- Avionics
- Communications/Networking
- Automotive
- Process Control
- Industrial Control/Automation
- Data Acquisition
ENCLOSURE DESIGN FEATURES
- Rugged steel enclosure
- Small, low profile design measures just 5 5/16″ x 8″ x 2″
- Attractive black powder coated finish
- Stainless steel screws and aluminum standoffs
- Simple assembly
Ordering Guide
104T-BOX – T-BOX enclosure and dual PC/104 backplane
104-BP2 – Dual PC/104 backplane (No T-BOX included)
T-BOX – Rugged steel enclosure including mounting hardware
| Model | Description | Price (USD) | |
|---|---|---|---|
| 104T-BOX | Dual PC/104 Enclosure | $199.00 |
